TS Fire, Smoke + Acoustic Door Seal

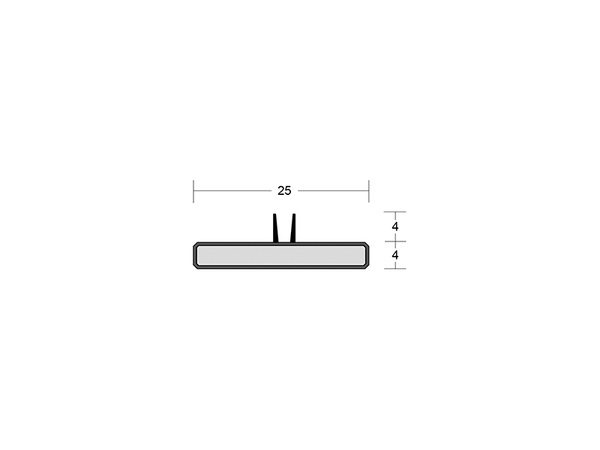

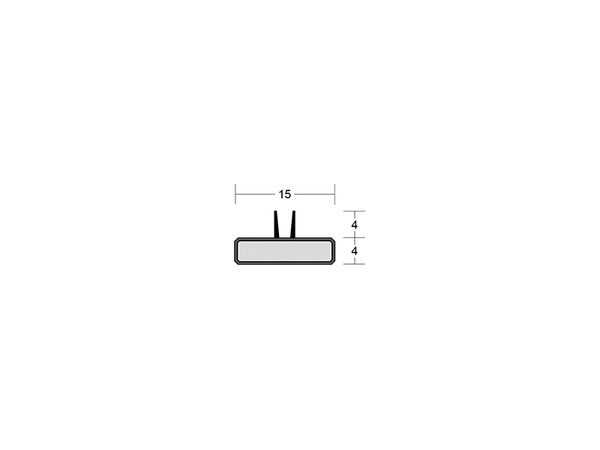

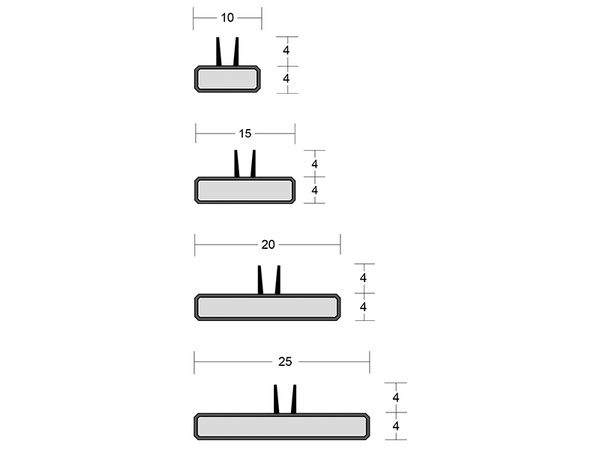

LP1004TS, LP1504TS, LP2004TS

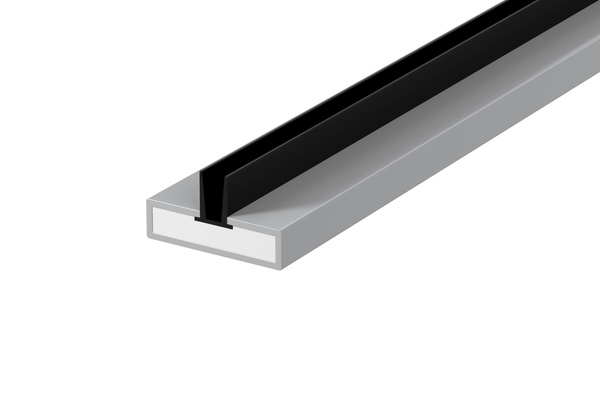

Our TS door seal with double elastomeric fins offers fire, smoke + acoustic protection, with the added benefit of thermal containment.
Note: The limitations of the printing process mean the colours and finishes shown here may not be exactly the same as the seals supplied. Request free samples to assist in colour matching.
System specification
| Property | |
|---|---|
| LOCATION | Single + double leaf doors |
| MIN/MAX GAP SIZES | 3mm/4mm |
| SEAL MATERIAL | PVC encased sodium silicate + flexible elastomeric fins |

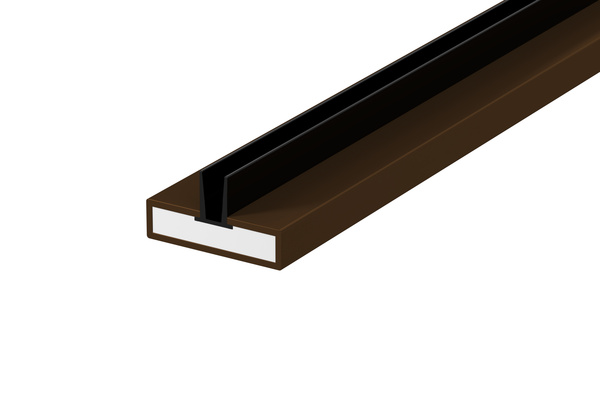

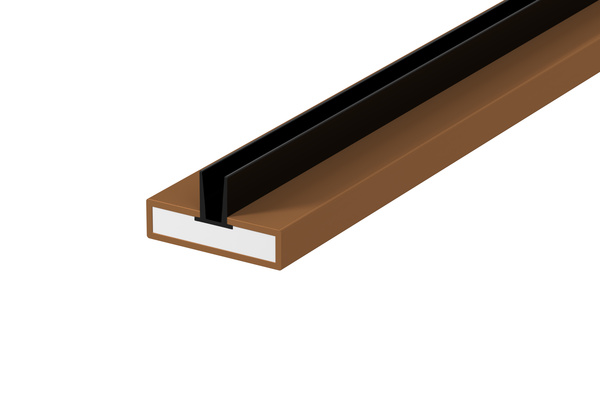

| Standard colours | White, black, dark brown, light brown + grey. with black fins as standard |

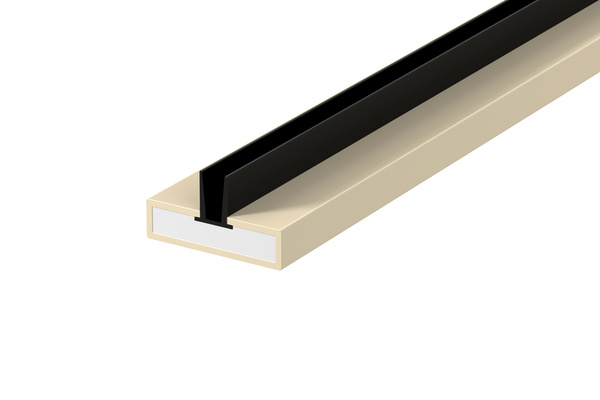

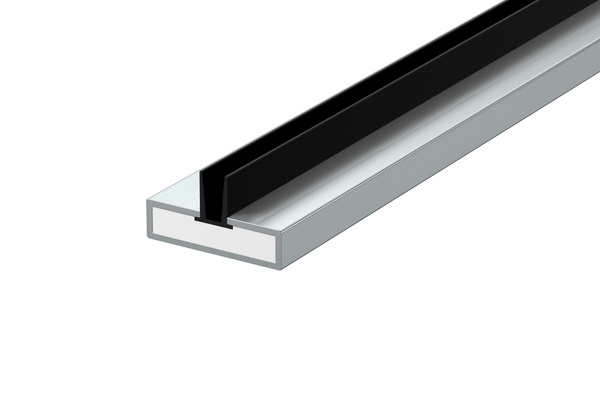

| Non-standard finishes | Cream, red, silver + woodgrains are subject to MOQs |
| STANDARD LENGTHS | 1m + 2.1m |
| TEST EVIDENCE | Fire: BS 476-22:1987 & BS EN 1634-1:2008. Smoke: BS 476-31.1: 1983 at ambient temperature. Assessment: CNA/F14171. Acoustic: BS EN ISO 10140-2:2010. Durability: 100,000 cycles |
| Performance | Meets smoke requirement: BS 9999: 2017 |
| CERTIFICATION | |
| Certifire | CF330 + CF341 |
| BBA | 92/2841 |
| IFC | FRPP454 |
