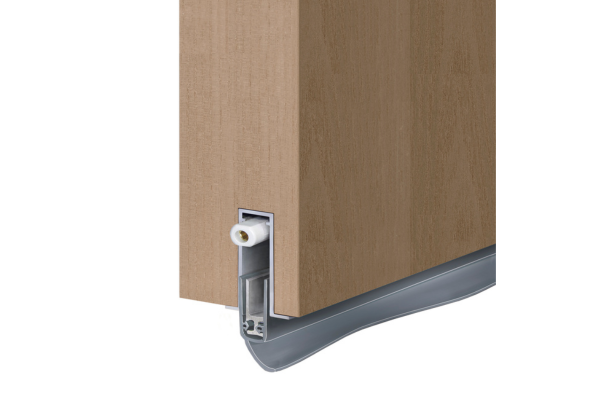

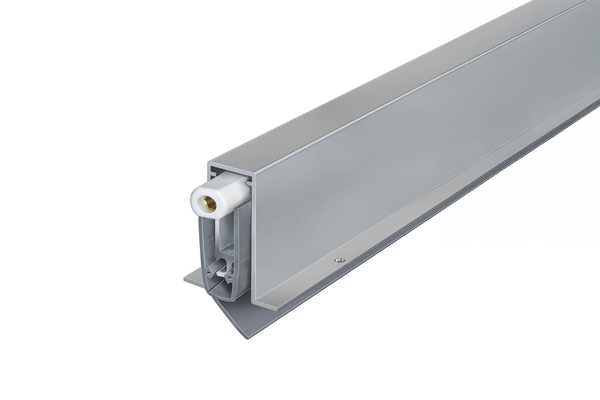

Planet RF drop seal
Mortised

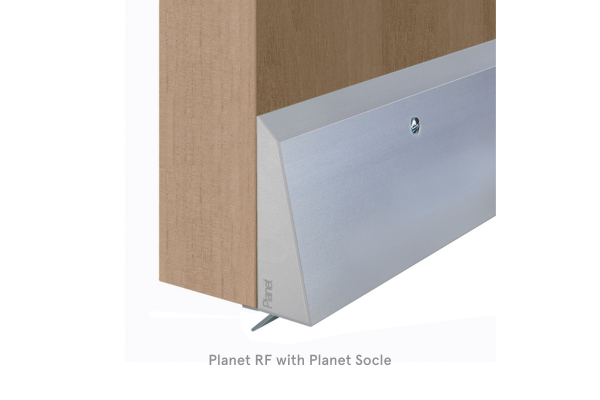

A mortised automatic drop seal designed for timber, metal, and PVC doors. Featuring a high-efficiency mechanism with hinge-side triggering, it enables parallel lowering and automatic adaptation to uneven floors. Its bevel lip ensures a secure seal on irregular surfaces and accommodates gaps of up to 27mm. Suitable for fire and smoke-shielding doors. Can be face-fixed with optional cover plate.
System specification
| Property | |
|---|---|

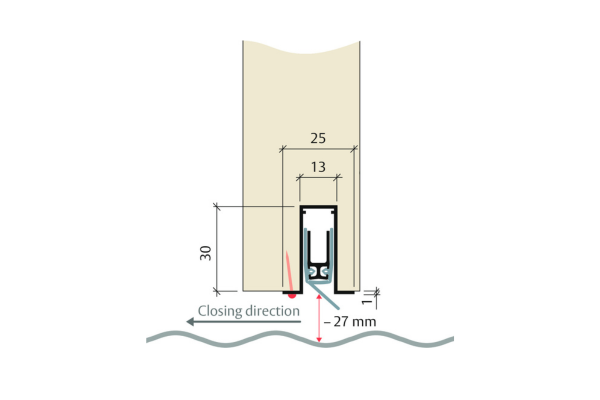

| Profile size | 13 x 30 mm |
| Max. drop height | 27 mm |
| Can be shortened | max. 100 mm |
| Standard lengths | 350mm, 450mm, 550mm, 650mm, 750mm, 850mm, 950mm, 1050mm, 1150mm, 1250mm, 1350mm, 1450mm |
| Non-standard lengths | Sizes up to 6m are available to special order |
| Sound absorption value | up to 44 dB at ground air 7 mm |
| Incl. accessories | Planet stopping plate, type 1 (stainless steel) |
