Planet HS-Plus Drop seal
Mortised
A mortised automatic drop seal designed for timber, metal, and PVC doors. Featuring a high-efficiency mechanism with hinge-side triggering, it enables parallel lowering and automatic compensation for sloping floors. Suitable for fire and smoke-shielding doors, with a seal height of up to 22mm.
System specification
| Property | |
|---|---|

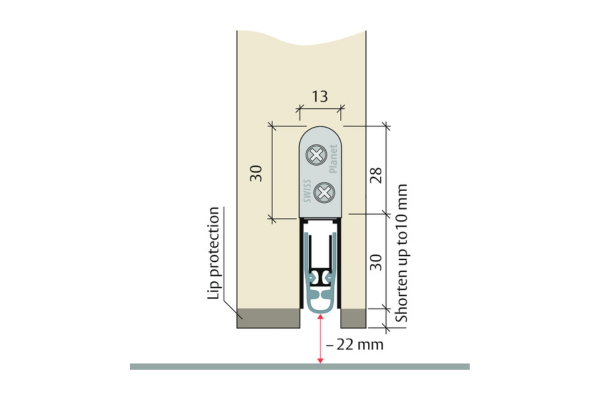

| Profile size | 13 x 30mm |
| Max. drop height | 22mm |
| Profile material | Aluminium |
| Seal profile | High-quality silicone or high-quality self-extinguishing silicone |
| Sound absorption value | up to 55dB (at ground air 7mm) |

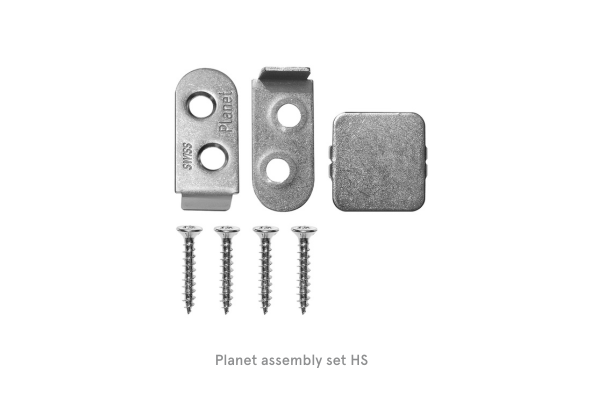

| Fastening | With stainless steel mounting brackets and screws on the side |
| Can be shortened | max. 125mm (335mm only 115mm) |
