Planet HS Drop Seal
Mortised

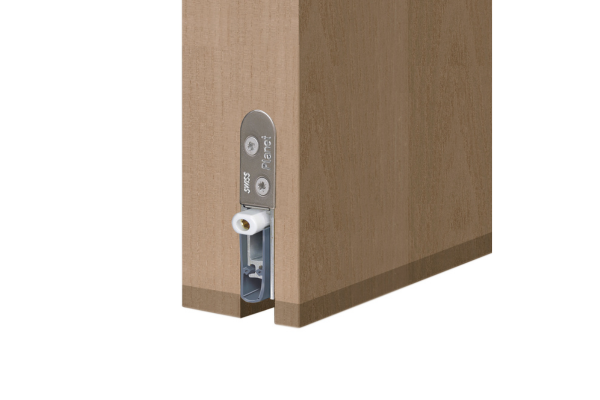

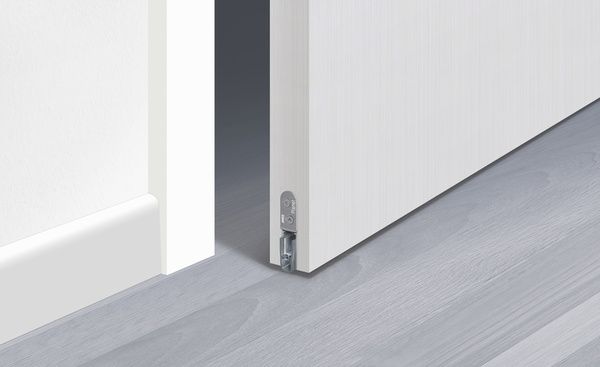

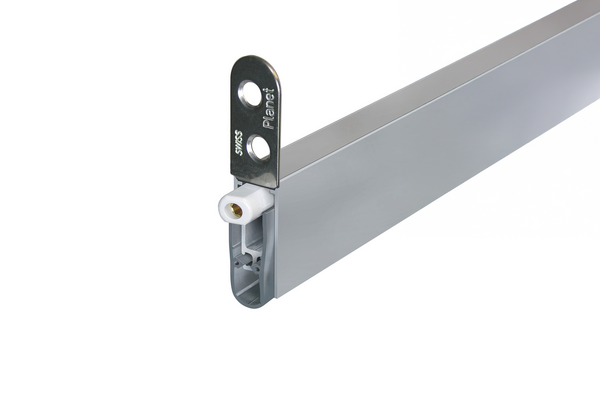

A mortised automatic drop seal designed for timber, metal, and PVC doors. Featuring a high-efficiency mechanism with hinge-side triggering, it enables parallel lowering and automatic compensation for sloping floors. Suitable for fire and smoke-shielding doors, with a seal height of up to 22mm.
System specification
| Property | |
|---|---|

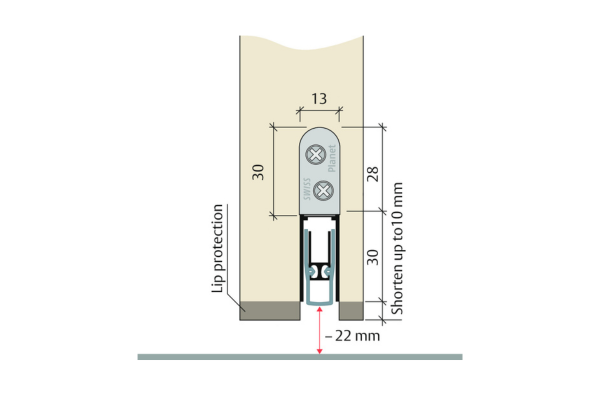

| Profile size | 13 x 30 mm |
| Profile material | Aluminium carrier with silicone gasket |
| Max. drop height | 22 mm |
| Sound absorption value | up to 48dB at ground air 7 mm |
| Can be shortened | max. 125 mm (335 mm only 115 mm) |

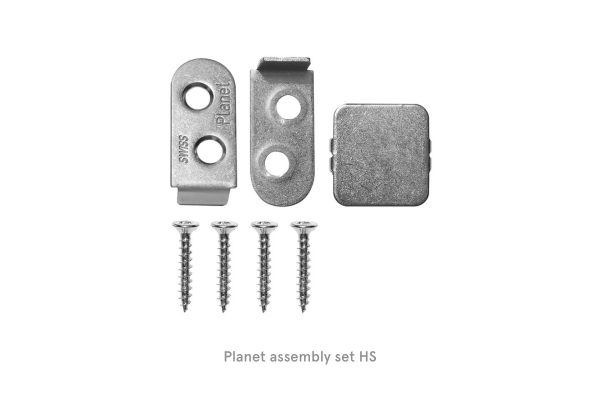

| Fastening | with stainless steel mounting brackets and screws on the side |
