LAS9010 Flush Bolt + Drop Seal
Architectural Seals

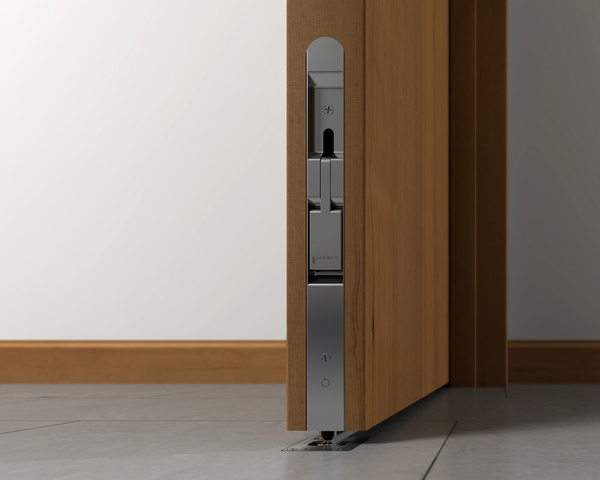

An innovative, slimline flush bolt that seamlessly integrates with our most popular drop seal - LAS8001 si. The flush bolt is a security device to be used on pairs of doors to secure the inactive leaf. It is activated by a discreet Lorient branded lever, that drops the bolt into a sleek keep in the floor. Specifically designed for use with our rebated high performance drop seal; together they provide the ultimate system combining security, with acoustic, smoke & energy containment at the bottom of the door.
Finish
System specification
| Property | |
|---|---|
| Test evidence | Maintains acoustic performance of drop seal 41dB (BS EN ISO 10140-1:2010+A2: 2014, Annex J). Fire: BS 476-20/22: 1987 in an FD30.* Fire: BS 476-20/22: 1987 in an FD60.* Smoke: BS EN 1634-3:2004 at ambient and medium temperature; effective smoke seal up to 200°C. Classified to BS EN 12051: 2000. Durability: 50,000 cycles |
| LOCATION | Double swing doors. For use on both right + left handed doors. Suitable for bottom + top of the door |
| MIN/MAX GAP SIZES | 1mm/13mm |
| SEAL MATERIAL | Grey or black silicone rubber |
| FINISHES | Brushed stainless steel |
| STANDARD LENGTHS | 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm + 1235mm. Note: each length can be cut to the next size down. The 335mm can be cut back to 255mm |
| CLASSIFICATION | |
| Category of use | 1 |
| Number of test cycles | 4 |
| Test door mass | - |
| Fire Resistance | 1 |
| Safety in use | 0 |
| Corrosion resistance | 3 |
| Security | 1 |
