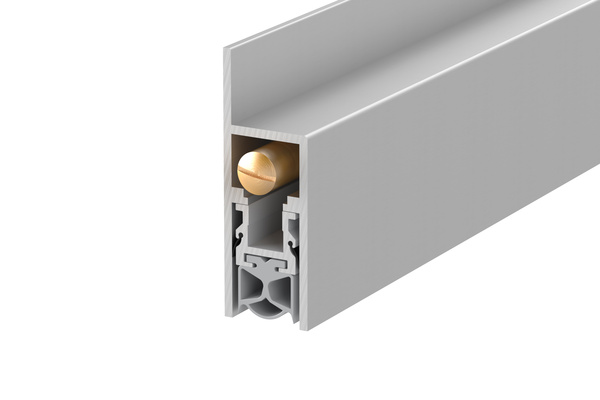

LAS8006 si Drop Seal
face-fixed
A heavy duty, face-fixed automatic drop seal. It features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces. Requires no power connection. Self-levelling on uneven floors; seal height can be adjusted independently of fixing screws.
Finish
System specification
| Property | |
|---|---|
| TEST EVIDENCE | Smoke: BS 476-31.1: 1983 at ambient temperature. Acoustic: BS EN ISO 10140-2:2010 (up to Rw 30dB) |
| Characteristics | Meets smoke requirement: BS 8214:2016. Contributes towards sound, smoke, draught, and light containment. Suitable for wheeled traffic |
| Location | Single swing, single + double leaf doors. For use on both right + left handed doors |
| MIN/MAX GAP SIZES | 1mm/15mm |
| SEAL MATERIAL | Black or grey silicone rubber |
| Standard finish | Silver anodised aluminium with grey end caps and grey silicone rubber gasket as standard |
| Non-standard finish | Bronze anodised aluminium with black end caps and black silicone rubber gasket are subject to non-standard charges and additional lead times. Other powder-coated colour finishes (non-standard - charges and lead times apply) |
| STANDARD LENGTHS | 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm + 1235mm. Note: Each length can be cut back to the next size down. The 335mm can be cut back to 275mm |
| ADJUSTMENT | Self-levelling on uneven surfaces – can be adjusted independently of the fixing screws |
| CERTIFICATION | |
| UL | R27972 |
