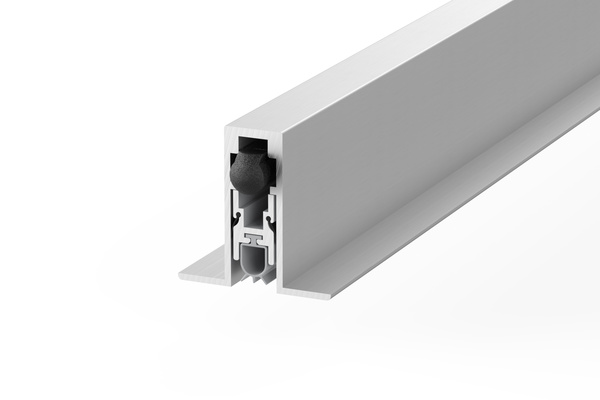

LAS8005 si Drop Seal
mortised
A slimline, mortised automatic drop seal. It features ahigh efficiency mechanism, which lifts the seal clear of thefloor as soon as the door is opened by a few millimetres;resulting in lower door operating forces. Requires no powerconnection. Self-levelling on uneven floors; seal heightcan be adjusted independently of fixing screws. Can befitted to aluminium doors by door fabricators.
Finish
System specification
| Property | |
|---|---|
| Test evidence | Fire: BS 476-20/22:1987 & BS EN 1634-1:2014. Smoke: BS 476-31.1: 1983 & BS EN 1634-3:2004 at ambient temperature. Acoustic: BS EN ISO 10140-2:2010 (up to Rw 33dB). Durability: 100,000 cycles |
| Characteristics | Suitable for use on fire rated timber based door assemblies. Meets smoke requirement: BS 8214:2016. Contributes towards sound, smoke, draught, and light containment. Suitable for wheeled traffic |
| Location | Single swing, single + double leaf doors. For use on both right + left handed doors |
| Min/max gap size | 1mm/13mm |
| Seal material | Grey silicone rubber |
| Standard finish | Silver anodised aluminium with grey end caps and grey silicone rubber gasket as standard |
| Non-standard finish | Other powder-coated colour finishes (non-standard - charges and lead times apply). Black end caps, and black silicone rubber gasket (non-standard - charges and lead times apply) |
| Standard lengths | 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm + 1235mm. Note: Each length can be cut back to the next size down. 335mm can be cut back to 255mm |
| ADJUSTMENT | Self-levelling on uneven surfaces. Seal height can be adjusted independently of the fixing screws |
| CERTIFICATION | |
| Certifire | CF5179 |
| UL | R27972 |
