LAS8001M Drop Seal
Mortised

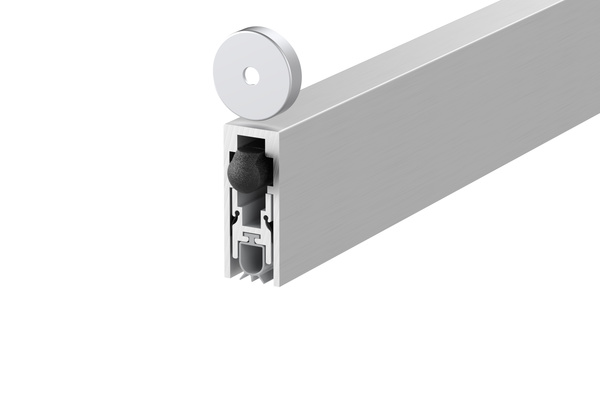

A slimline, mortised automatic drop seal for timber sliding doors. The end plate cleverly conceals a magnet, which engages with a button in the frame, to assist the door closure and ensures the gasket remains in the dropped position without forcing the door open. The seal features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces.
Finish
System specification
| Property | |
|---|---|
| Characteristics | Meets threshold sealing requirement of BS 8214:2016 section 12.3. Contributes towards sound, draught,and light containment.Suitable for wheeled traffic |
| Location | Sliding doors |
| Min/max gap size | 1mm/13mm |
| Seal material | Grey or black silicone rubber |
| Standard lengths | 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm + 1235mm. Sizes above 1235mm are available on request. Note: Each length can be cut back to the next size down. The 335mm can be cut back to 255mm |
| Standard Finish | Silver anodised aluminium with silver end plates, and grey silicone rubber gasket as standard. |
| Non-standard finish | Silver anodised aluminium with bronze end plates, and black silicone rubber gasket are subject to non-standard charges and additional lead times. |
| Adjustment | Self-levelling on uneven surfaces |
