LAS3008 si Door Bottom Seal
Face-fixed

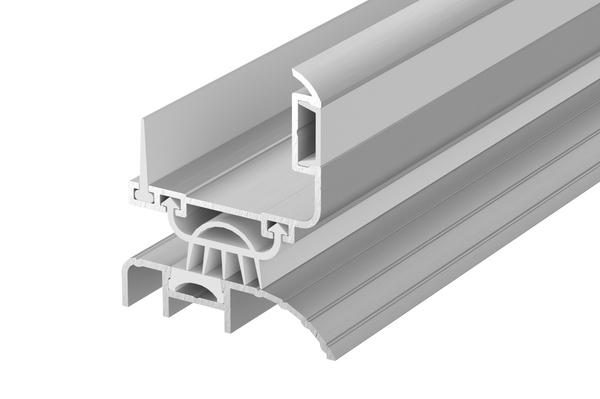

A multi-blade, door bottom seal combination consisting of the LAS3007 si door bottom seal and LAS4015 threshold plate. Durable, anodised aesthetic finish. It can be fitted without removing the door. Concealed fixings, pre-drilled and slotted holes on LAS3007 si for easy adjustment.
Finish
System specification
| Property | LAS3007 | LAS4015 |
|---|---|---|
| Characteristics | Contributes towards smoke, weather, draught, and light containment when fitted with a suitable threshold seal | Contributes towards smoke, weather, draught, and light containment when fitted with a suitable threshold seal. Provides an even surface underneath the door; suitable for wheeled traffic |
| LOCATION | Single swing doors | Single swing doors |
| MIN/MAX GAP SIZES | 22mm/24mm | 22mm/24mm |
| SEAL MATERIAL | Flexible silicone rubber | Aluminium with PVC cover strip |
| Standard finish | Silver anodised aluminium with grey cover strip and grey silicone rubber blade | Silver anodised aluminium with grey cover strip and grey silicone rubber blade |
| Non-standard finish | Bronze anodised aluminium with black cover strip and black silicone rubber blade are subject to non-standard charges and additional lead times | Bronze anodised aluminium with black cover strip and black silicone rubber blade are subject to non-standard charges and additional lead times |
| STANDARD LENGTHS | 1m + 2.1m. Other lengths to special order | 1m + 2.1m. Other lengths to special order |
