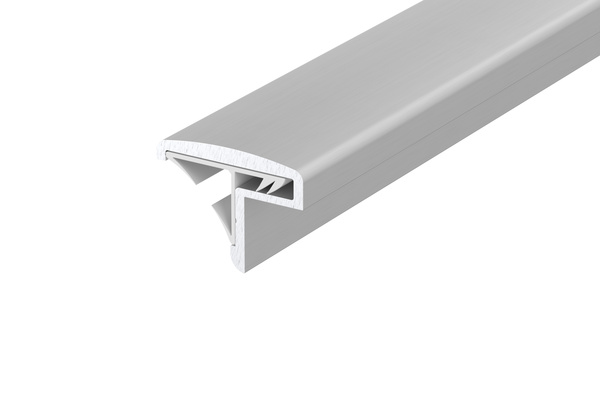

AAS7506 Meeting Stile Seal
Face-fixed
A robust seal designed for use on plain or rebated meeting stiles. With proven acoustic performance it is also suitable for smoke, light, and draught containment. The leg can be cut out to make way for locks and latches.
Finish
System specification
| Property | |
|---|---|
| TEST EVIDENCE | Acoustic: BS EN ISO 10140-2: 2010. |

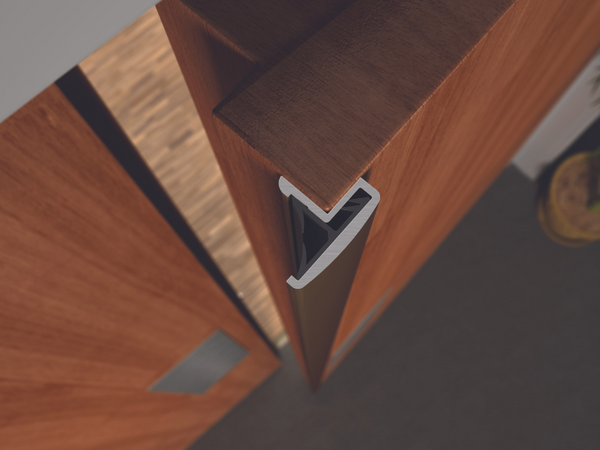

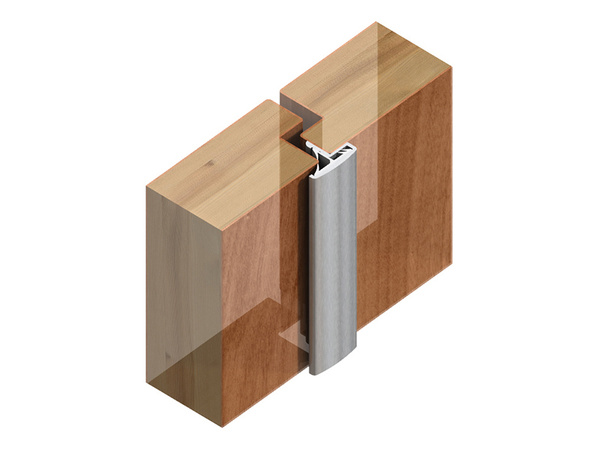

| LOCATION | Meeting stiles of single swing doors. Double doors – where only one door leaf is in use |
| SEAL MATERIAL | Co-extruded elastomeric with flexible curved fins |
| Standard finish | Silver anodised aluminium carrier with grey insert as standard |
| Non-standard finish | Carrier: Other finishes available to special order (non-standard - charges and lead times apply). Batwing® insert: Black, white, dark brown, light brown, silver, cream, red and clear are subject to MOQs. Note: clear Batwing® will not prevent light penetration |
| STANDARD LENGTHS | 1m + 2.1m |
